A wheelie good mezzanine in London

A Wheelie Good Mezzanine

We were approached by a wheel chair manufactures in London to design, supply and install a mezzanine floor and office partitioning systems.

Taking into account the clients requirements we designed a 61 sq metre mezzanine floor with a 4.8 kn/m2 load capacity. In order to match building regulations requirements we installed a 30 minute fire rated 20 sq metre armstrong suspended ceiling, 60 minute galvanised column cladding and 12 metres of 30 minute fire protected fascia, we also installed insulation above an existing office ceiling to ensure the floor was fully fire protected.

We then installed partitioning above the mezzanine for the office space and a suspended ceiling to finish it off. Our experienced and highly trained electricians fitted the electrics, smoke detection, alarms and lighting for both floors.

The client was very happy with the job.

For more information on our mezzanine floors please visit

http://www.mezzaninefloorscompany.co.uk/commercial-mezzanine-case-study-london

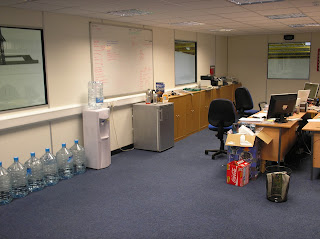

Finished Office Fit Out

http://www.mezzaninefloorscompany.co.uk/commercial-mezzanine-case-study-london

Finished Mezzanine Floor

http://www.mezzaninefloorscompany.co.uk/commercial-mezzanine-case-study-london

Fire Rated Mezzanine Underneath

http://www.mezzaninefloorscompany.co.uk/commercial-mezzanine-case-study-london

A rolled edge Mezzanine for the food industry

A mezzanine in progress

Rolled Edge Mezzanine In Gloucestershire

Our brief was to design, supply and install a mezzanine structure that is stable, rigid, structurally sound and suitable for use in the food industry.

With the clients consent we designed a mezzanine system with rolled hollow section beams and perlins.

Our design is for a 30 metre by 11 metre floor with a 4.1 metre finished floor height with a 10 kn/m2 load capacity suitable for storage and the use of a hand pallet truck.



We have provided rolled hollow section beams and perlins for this mezzanine floor to ensure that no loose materials settle into any grooves or over hanging areas. This will remove any possible infestation issues.


Once the structure is finished we will be installing a 6mm steel plate for the finished flooring.


The finished floor will be ready for use in the next few days and we will post more information then.

More information on our mezzanine floors can be found at :

http://www.mezzaninefloorscompany.co.uk/mezzanine-type

Mezzanine Floors and racking incorporated

This summer we finished a large archive project for an existing client in Newcastle-Upon-Tyne.

Our warehouse design project managers designed a two tier archive racking system to take full advantage of the 8 metre warehouse height available. This project is a perfect example of how a mezzanine floor and racking system can be incorporated together to fully utilise space efficiently.

With the full blessing of our client, our project managers worked with our experienced installers to produce a workable plan. Using a reinforced beam level at 4.1 metres our installers fitted timber joists followed by a standard 38mm moisture resistant chipboard to create a load bearing floor. Incorporating two staircases and all smoke detection, lighting requirements and bespoke access ladders to finish the job off to standard.

Using multiple storage solutions together can be very effective, but is often very difficult to plan. This system was perfect for our client because our experienced project managers were able to design bespoke shelving which enabled us to incorporate a higher number of shelves than usual. And with our mezzanine floor expertise we ensured the system we easily accessible.
